Подробная информация о продукте:
|
| Максимальный гнуть размер: | 2000 * 2000 | Минимальный гнуть размер: | 250 * 200 |
|---|---|---|---|
| Подача воздуха: | 0.65Мпа | имя: | Гибочное устройство прокладки автоматической алюминиевой гибочной машины прокладки изолируя стеклянн |
| Высокий свет: | Гибочная машина прокладки 2000*2000,Гибочная машина прокладки PLC,Изолируя стеклянное автоматическое гибочное устройство прокладки |
||

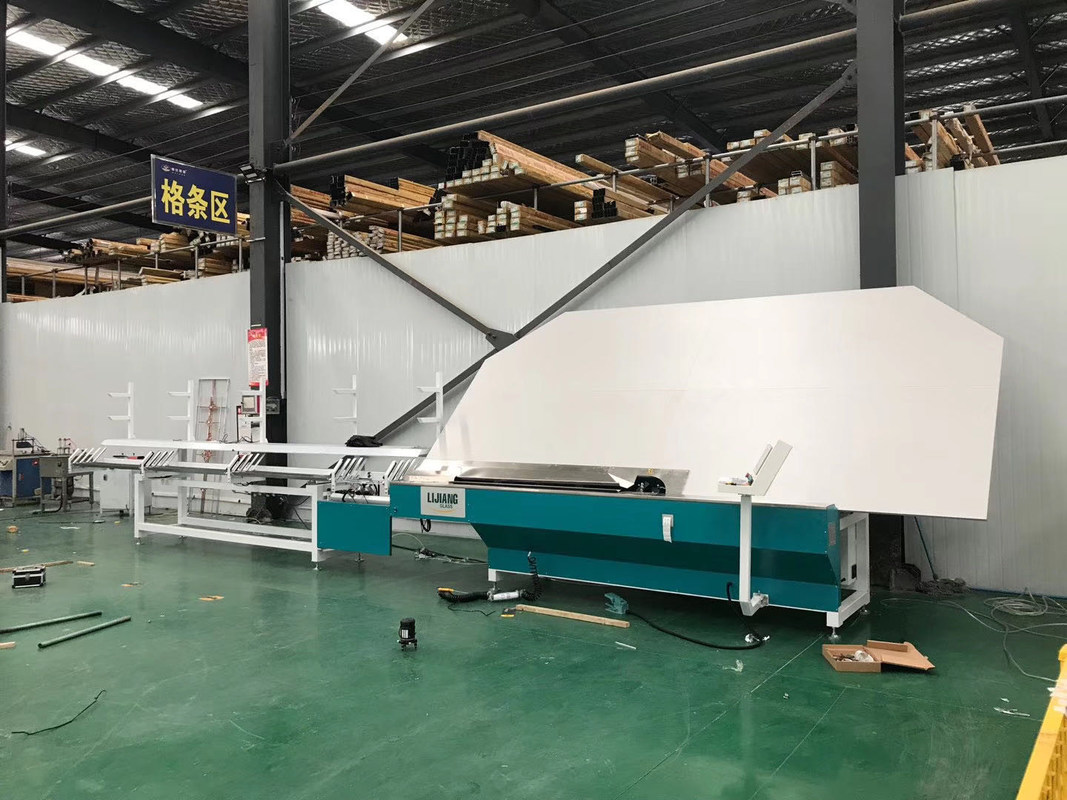

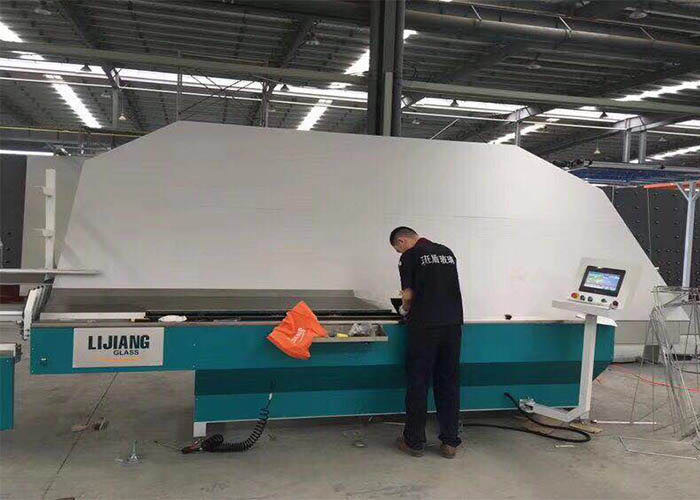

Automatic Aluminum Spacer Bending Machine Insulating Glass Automatic Spacer Bender
The automatic spacer bending machine is a special device for the production of aluminum frame made of insulated glass, which replaces the traditional production technology. The device can create various convex polygonal aluminum frames, each with an aluminum strip, which strengthens the strength of the aluminum frame and further enhances the sealing effect of the insulating glass.
Equipment details
Approved Siemens PLC control system
There are 4 Siemens servos
We use 4 sets of racks that can store spacers of different sizes. Use Siemens servos to replace different stands.
Aluminum spacers are automatically cut out and shipped

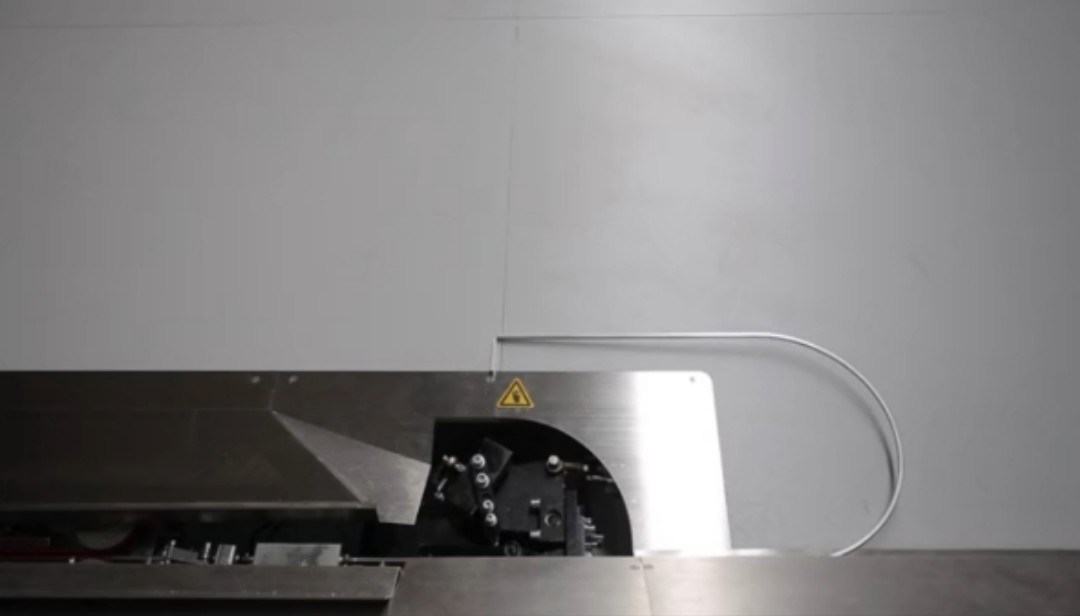

Continuously bent spacer frame
Automatically avoid connection corners when bending or cutting
Instead of grabbing the spacer from below, the machine grabs the spacer from above, solving the old-fashioned flip problem.
It uses industrial computer technology that allows industrial computer workers to draw on-site and directly bend the graphics they draw.
A separate mechanical hand tool is used to bend the large spacer frame
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Leading Technology
Company Information
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
