Подробная информация о продукте:
|
| имя: | Цена машины стеклянной производственной линии IGU изолируя изолируя стеклянная | Электропитание: | 380В, 50ХЗ или подгонянный |
|---|---|---|---|
| полная сила: | 40 КВ | Использование: | Для стекла процесса изолируя |
| Высокий свет: | Производственная линия Сименс изолируя стеклянная,Производственная линия IGU изолируя стеклянная,машинное оборудование двойного остекления 10m/min |
||

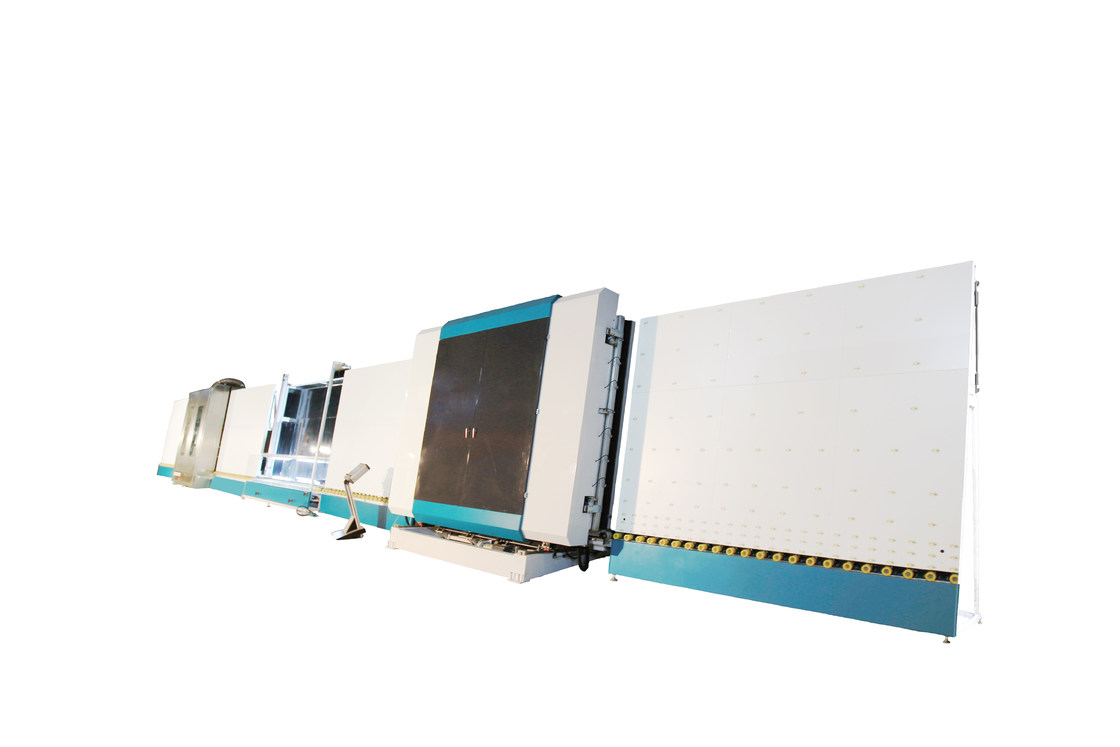

IGU Insulating Glass Production Line Insulating Glass Machine Price
Insulating glass machine can perform the following tasks: glass cleaning, aluminum frame placement, normal double glass, ordinary three glass, shaped glass and double glass second pressing.
Insulating glass machine The machine is specialized in the production of aluminum strip insulating glass, which has the advantages of small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, simple and smart operation;
2, the world-famous brand of core components, ensure stable operation and long service life;
3, is designed for processing high quality glass, such as reflective glass, ຳ E glass, reflective glass and tempered glass;
4, large glass processing size, various models and customization available;
5, Large production capacity, output 1,000pcs in working days;
6, can be used for two-layer, three-layer, pad and glass with irregular shape;
7, automatic air gas filling during the glass paper assembly process;
8, PLC control system, touch screen;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
Q: What is the payment term?
A: T / T, L / C and other payment terms can be negotiated.
Q: What guarantee is there about this machine?
A: 1). We guarantee 12 months.
2) .24 24-hour technical exchange by email or phone
3). English manuals and videos
4) .We will reserve the consumable part at the agency price
5) .24 hours of cable service each day, free technical updates.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can provide technical feedback, feedback to you within 24 hours and help you to repair your problem controller independently, even if it is not from our factory.
Company Information
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
