Место происхождения:
Китай
Фирменное наименование:
Lijiang
Сертификация:
CE
Номер модели:
ЛДЖЗК 2535

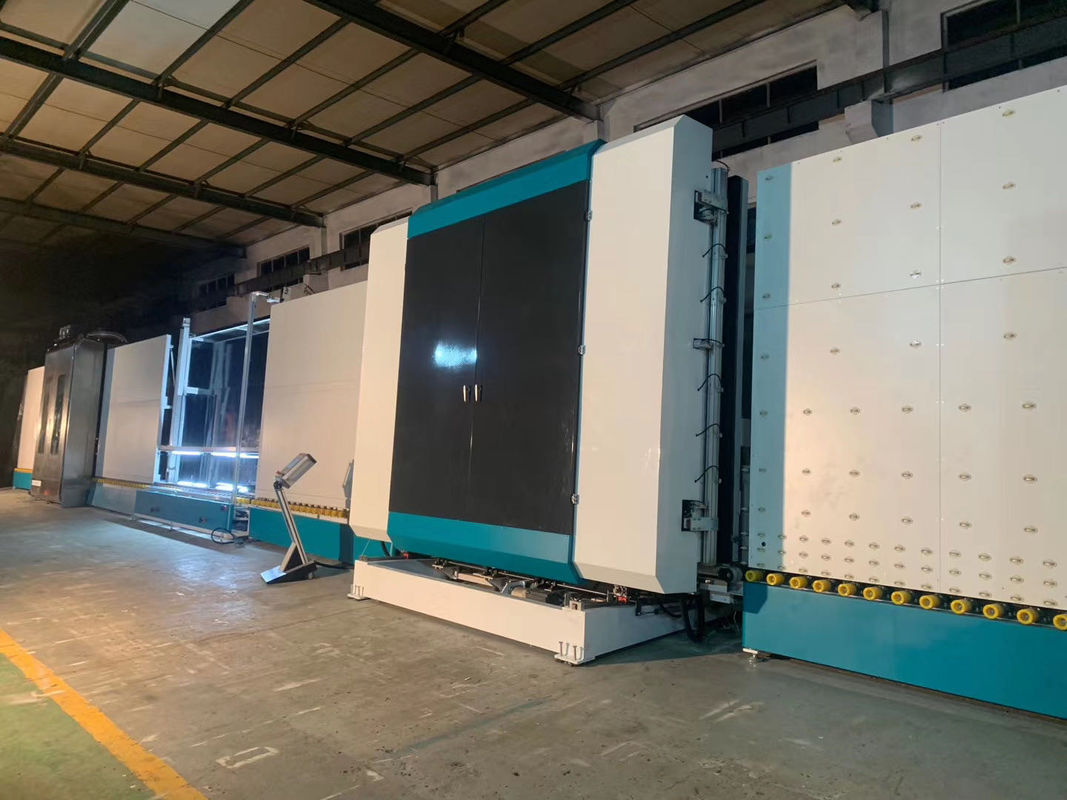

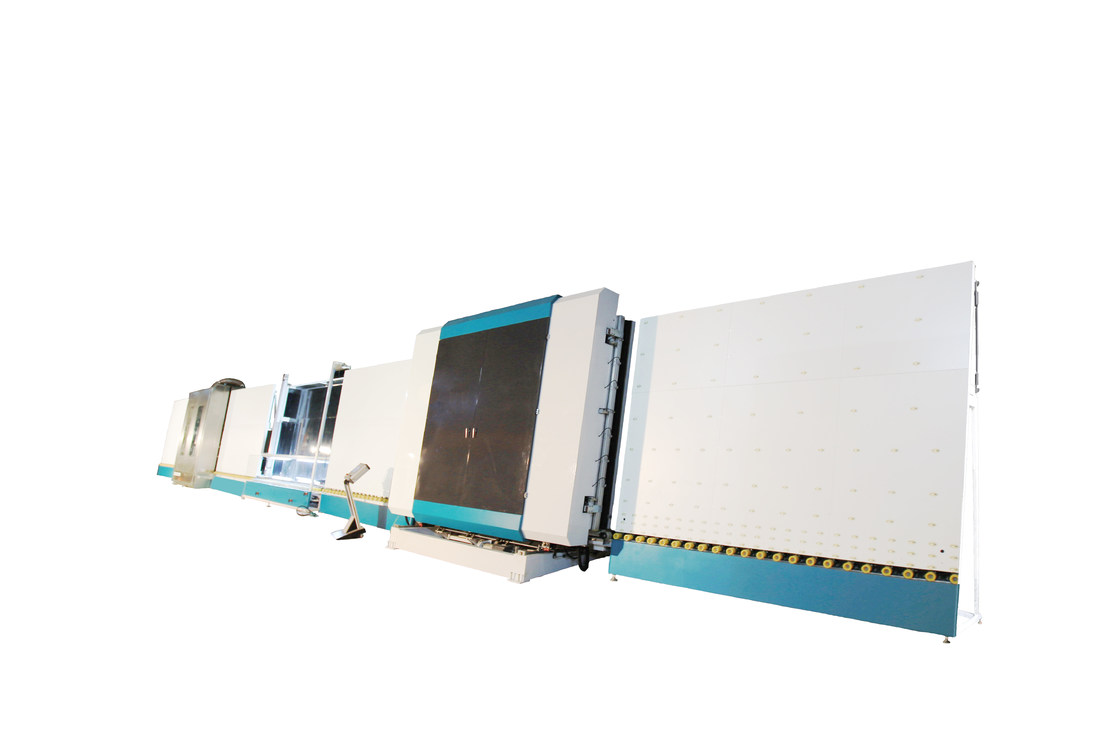

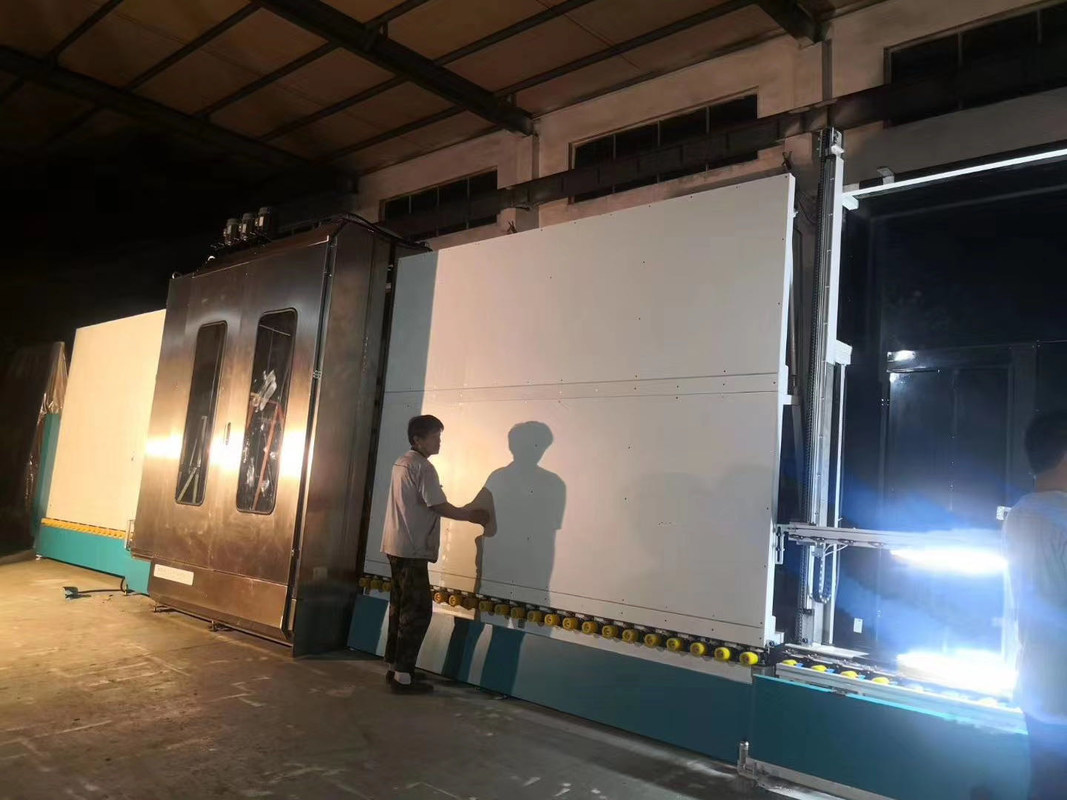

Glass Washing Machine Vertical Insulating Glass Production Line
The insulating glass machine can complete the following functions: cleaning glass, laying aluminum frame, ordinary double glass, three ordinary glass, formed glass and second pressing double glazing.
The insulating glass machine is a special equipment in the production of aluminum strip insulating glass, which is characterized by its small size, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, Europe design concept, simple and intelligent operation;
2, world famous brands of key components, ensure stable operation and long service life;
3, Designed for high quality glass processing, such as reflective glass, low-e glass, tempered glass, and laminated glass;
4, large glass processing scale, various models and customization available;
5, large output capacity, 1,000 pieces output in one working day;
6, Processable for double-layer, three-layer, step sheet metal and insulating glass with abnormal shape;
7, Automatic filling with argon air gas during the assembly process of the glass panel;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
