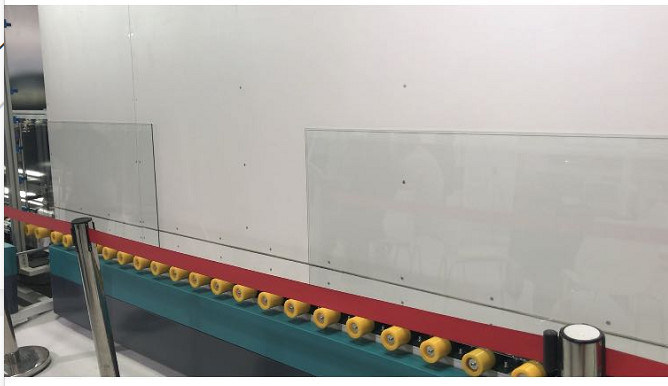

Vertical Insulated Glass Making Machine Double Glazed Glass Machine
The insulating glass machine can perform the following functions: glass cleaning, aluminum frame placement, normal double glass, ordinary three glasses, shaped glass and second double glass press.
The insulating glass machine is special equipment in the production of aluminum strip insulating glass, which has the advantage of small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, Europe design concept, easy and smart operation;
2, World famous brands for key components, ensure stable operation and long service life;
3, Designed for high quality glass processing, such as reflective glass, Low-E glass, toughened glass, and laminated glass;
4, Large glass processing scale, various models and customization available;
5, Large production capacity, 1000 pieces output in one working day;
6, workable for double layer, triple layer, graduated plate and abnormal shape insulating glass;
7, automatic argon gas filling of the gas during the glass plate assembly process;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
