Место происхождения:
Китай
Фирменное наименование:
Lijiang
Сертификация:
CE
Номер модели:
ЛДЖЗК 2535

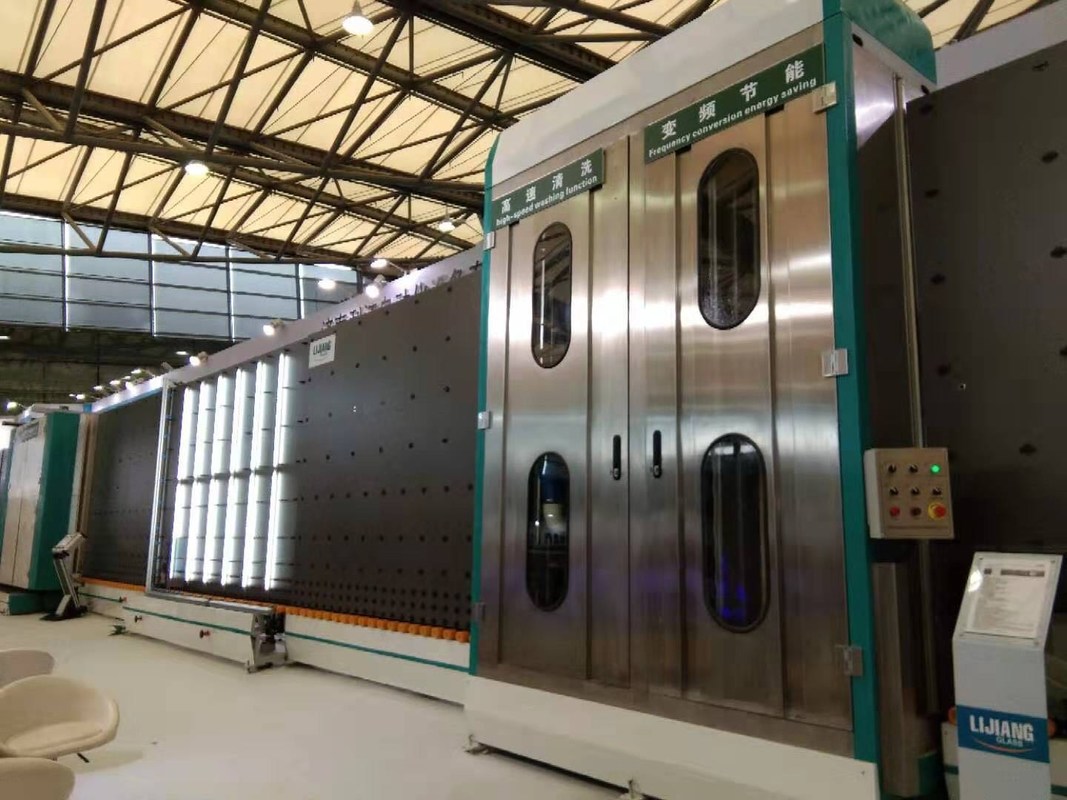

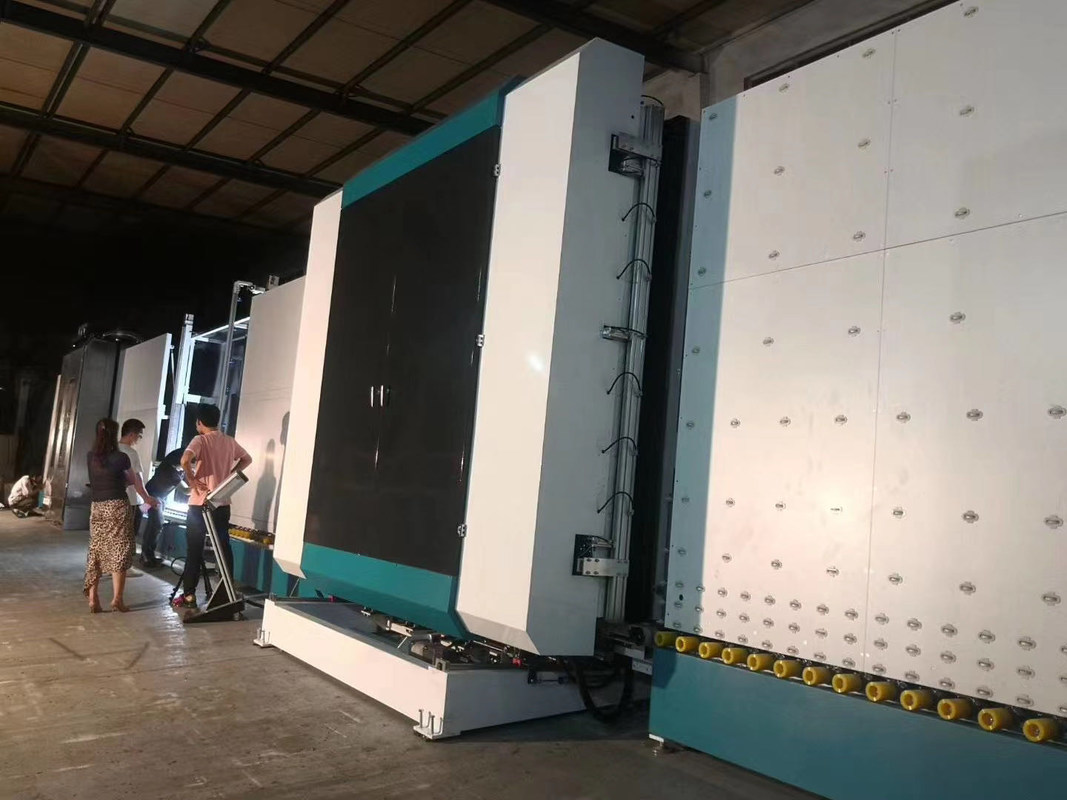

Insulating double glass fabrication machine making machine with CNC
The insulating glass machine can perform the following functions: glass cleaning, aluminum frame placement, normal double glass, ordinary three glasses, shaped glass and second double glass press.
The insulating glass machine is special equipment in the production of aluminum strip insulating glass, which has the advantage of small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1,Europe design concept, easy and intelligent operation;
2,World famous brands of key components, ensure stable operation and long service life;
3,Designed for high quality glass processing, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4,Large glass processing scale, various models and customization available;
5,Big output capacity, 1,000pcs output in one working day;
6,Workable for double layer, triple layer, stepped sheet and abnormal shape insulating glass;
7,Automatic argon air gas filling while glass sheet assembling process;
8,PLC controlling system, touching screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
